Advanced Ultra Filtration
Our Advanced Ultra-Filtration system represents the pinnacle of water filtration technology. Specifically engineered for both residential and commercial applications, this state-of-the-art system is adept at removing sub-micron impurities, ensuring water quality that’s not just clean, but pristine.
When combined with our BFD-high flow cartridges, this synergy provides an unparalleled flow rate without compromising filtration efficiency and significant reduction in backwash volume. This robust system offers not only exceptional quality (0.015 microns) but also efficiency, making it ideal for high-demand environments. Whether it’s for a bustling commercial establishment or a modern residence, our advanced Ultra-Filtration membranes paired with BFD- high flow cartridges stands as a testament to unmatched water treatment, delivering both quantity and quality seamlessly.
●Auto shut-off, pressure relief/rinse valves to ensure simple and safe installation and system maintenance
●Individual filters rated up to 7.5 GPM and 15 GPM
●Up to 265,000+ gallons Chlorine reduction per cartridge
●Up to 60,000 gallons Chloramine reduction per cartridge
●Up to 8 times more scale control capacity than many of the leading manufacturers
●Build-on-the-wall capability helps to reduce footprint
●Best-in-class performance/capacity modular design for simple customization and expandability
●Proven scale control performance
●High capacity, low pressure drop system configuration

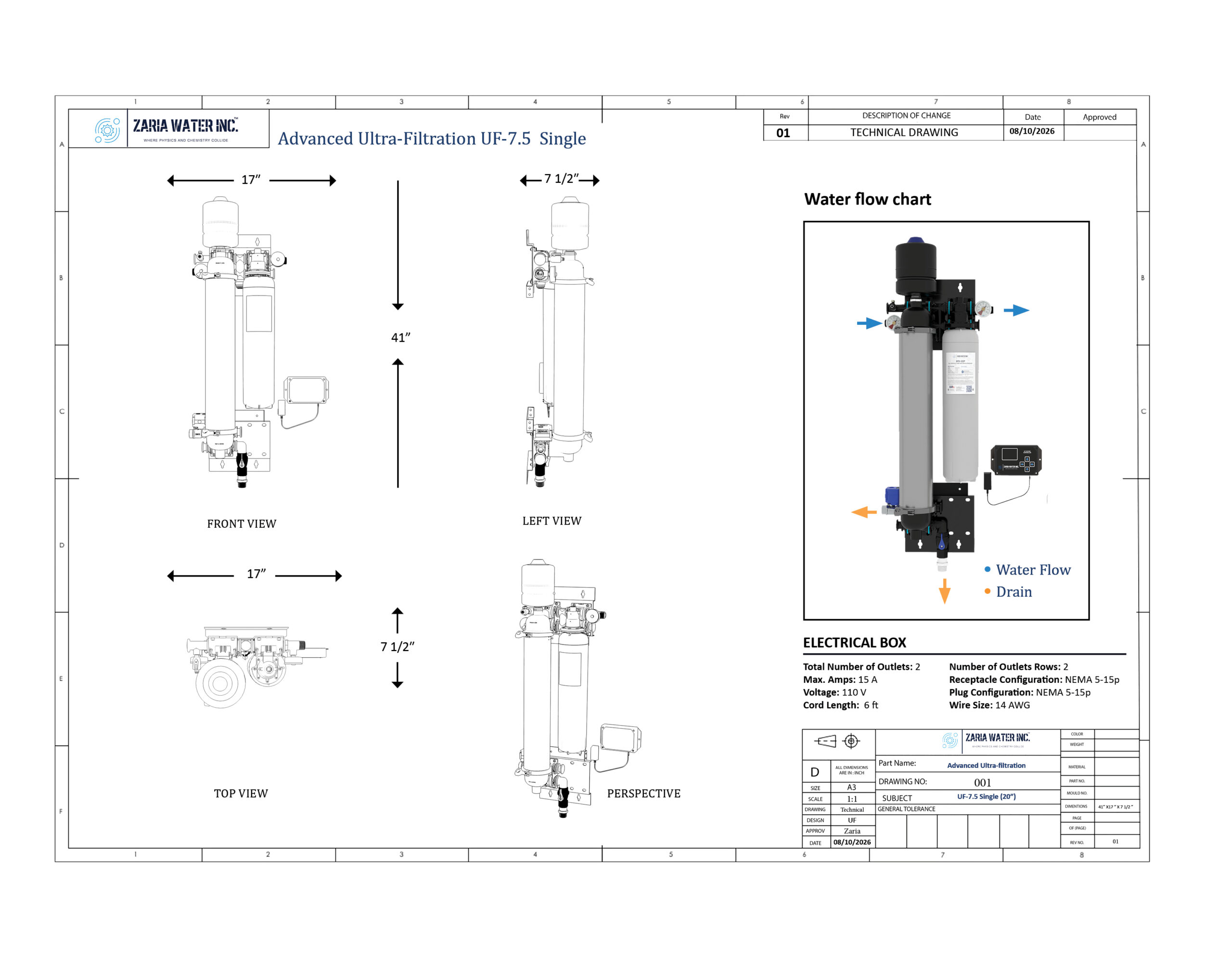

UF-7.5 Single
Maximum Flow Rate: 7.5 GPM
Overall Size: 41″ x 17″ x 7 1/2″
Plumbing Size: 3/4″ or 1″
Filtration type: 0.015 micron UF membranes & 5 micron BFD high flow cartridges.
Home size: Tailored for smaller homes or ADUs measuring under 1000 sq/ft up to 7.5gpm

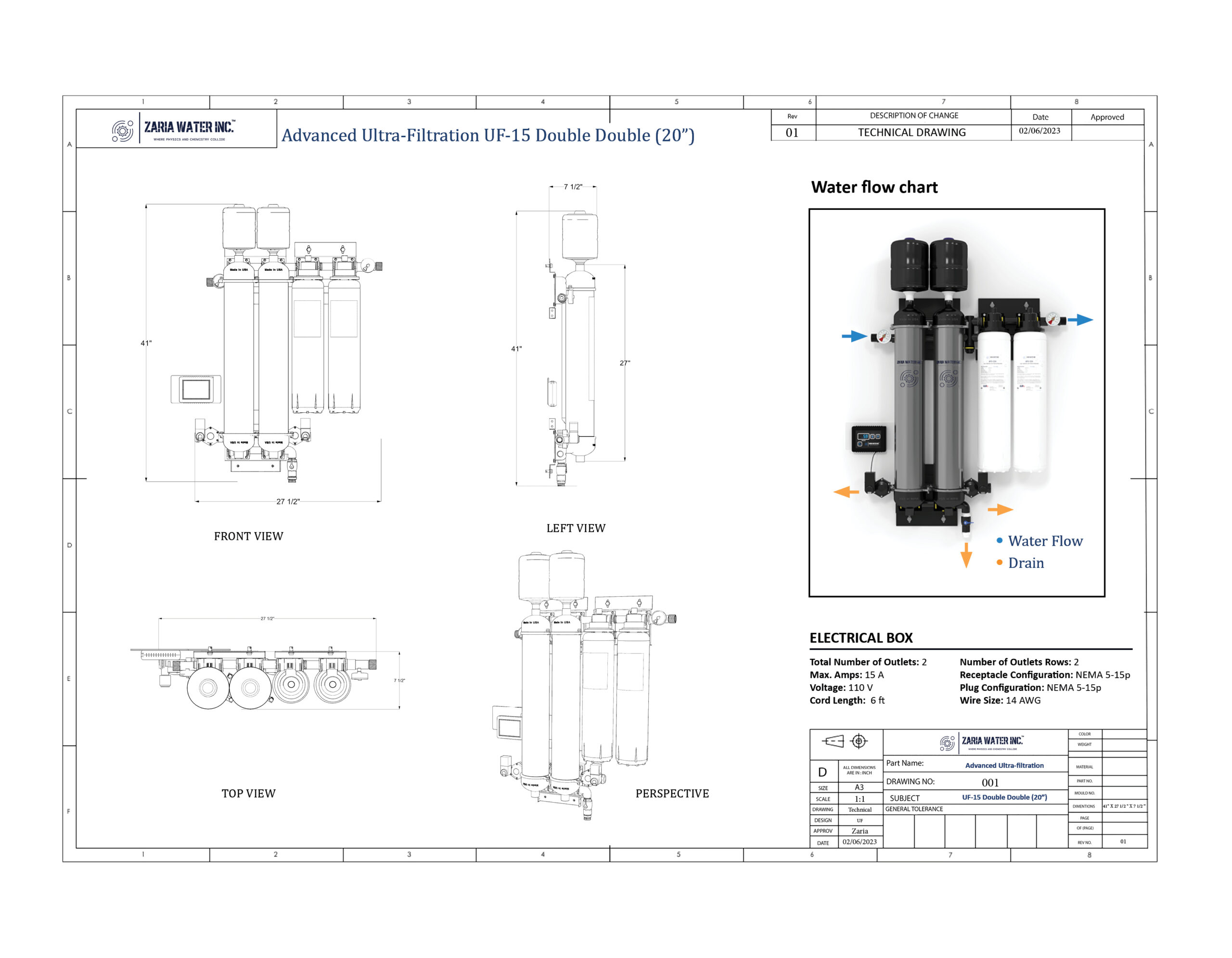

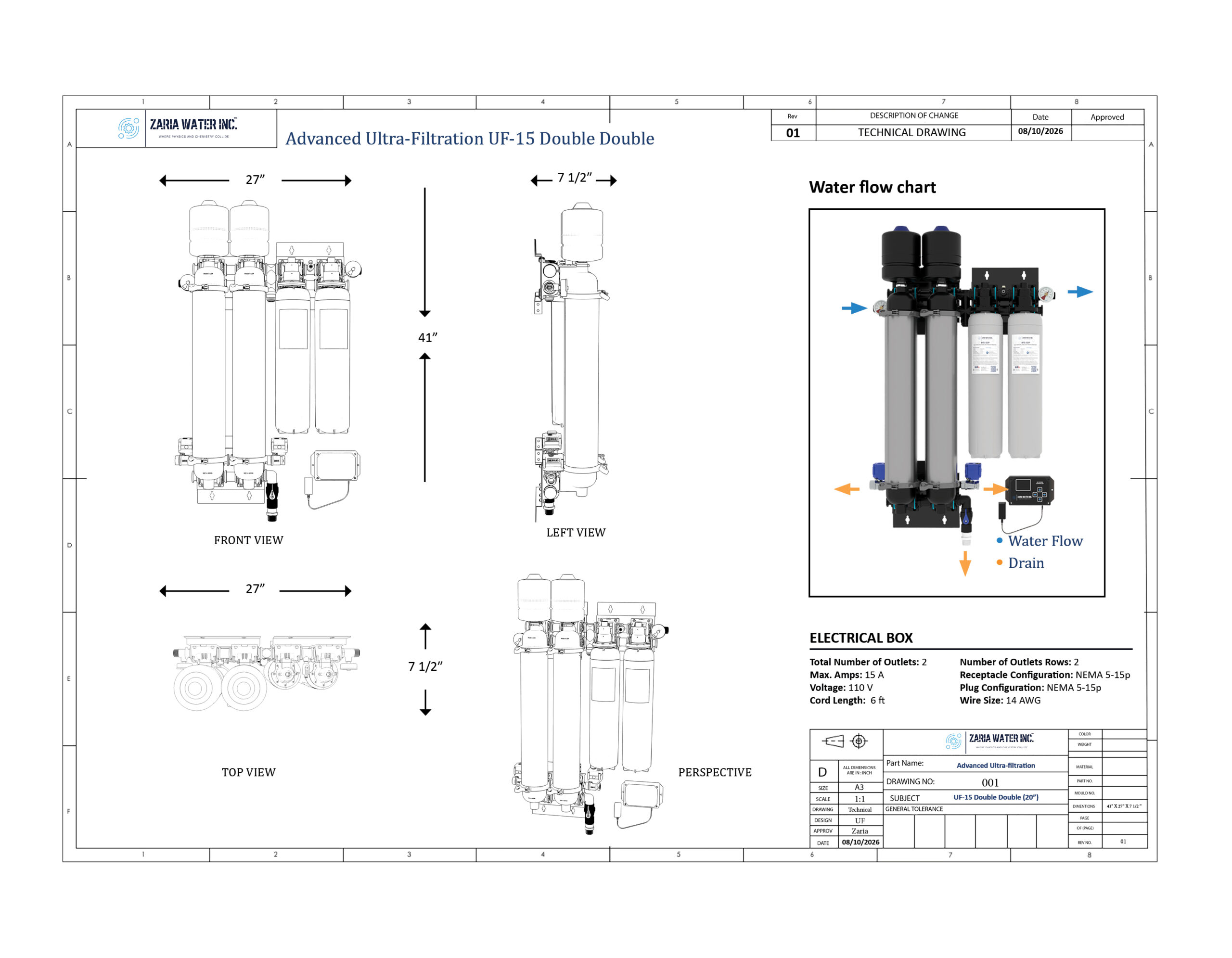

UF-15 Double Double
Maximum Flow Rate: 15 GPM
Overall Size: 41″ x 27″ x 7 1/2″
Plumbing Size: 3/4″ or 1″
Filtration type: Ultra Filtration + Five Micron Carbon Block High Capacity with Scale Control
Home size: Designed for high-demand residential applications that require continuous water usage, typically in homes ranging from 1000 to 2500 sq/ft up to 15gpm
Scan for Augmented reality

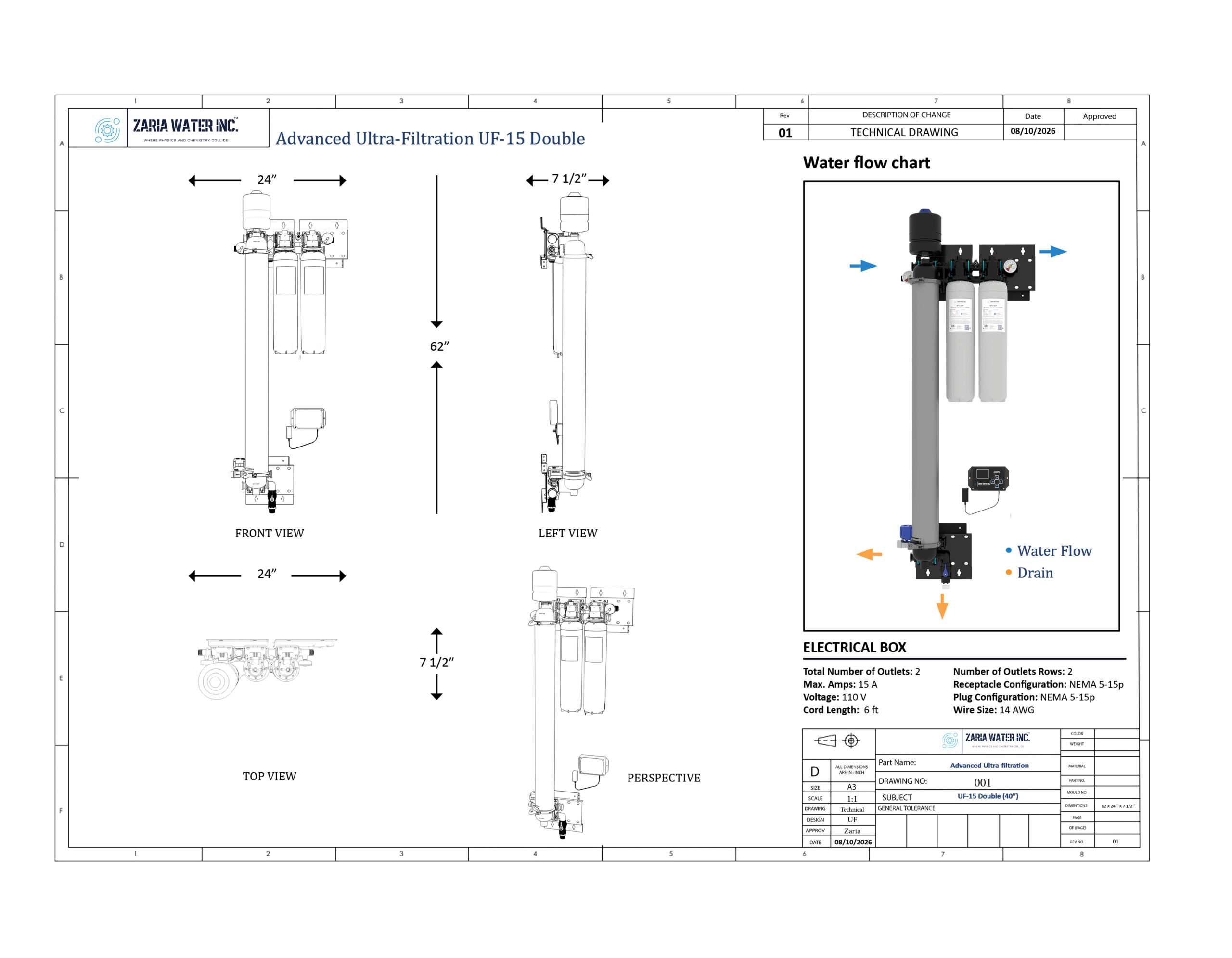

UF-15 Double
Maximum Flow Rate: 15 GPM
Overall Size: 62 ” x 24″ x 7 1/2″
Plumbing Size: 1″ or 1 1/4″
Filtration type: Ultra Filtration + Five Micron Carbon Block High Capacity with Scale Control
Home size:Designed for high-demand residential applications that require continuous water usage, typically in homes ranging from 1000 to 2500 sq/ft up to 15gpm

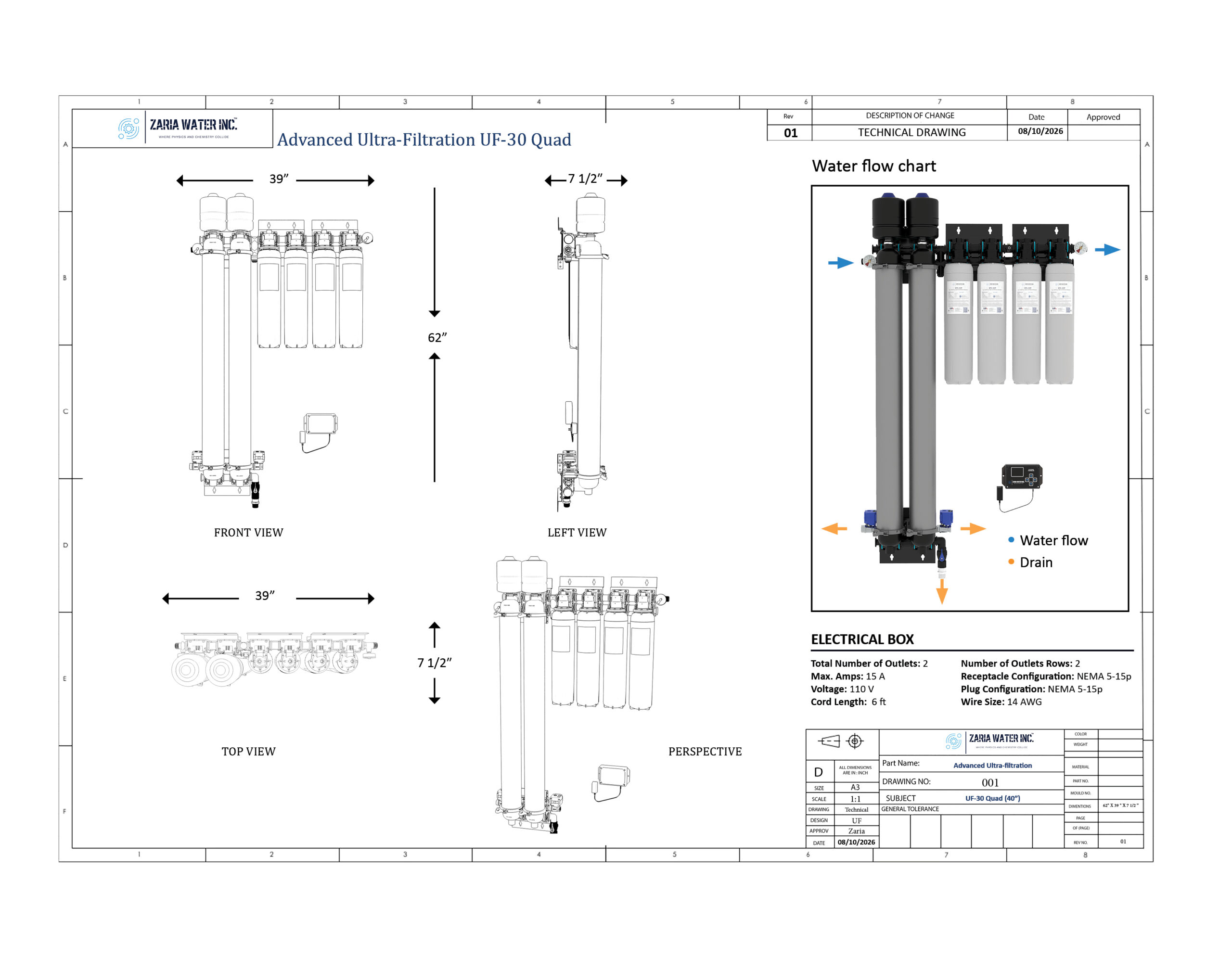

UF-30 Quad
Maximum Flow Rate: 30 GPM
Overall Size: 62″ x 39″ x 7 1/2″
Plumbing Size: 1″ or 1 1/4″
Filtration type: 0.015 micron UF membranes & 5 micron BFD high flow cartridges.
Home size: Designed for high-demand
residential applications that require continuous water
usage, typically in homes ranging from 3000 to 5000 sq/ft up to 30gpm
